PostJun 03, 2021#251

^You know, I just looked at that post on r/StLouis and I did not know that's what the whole "this thread in a nutshell" post was about. I really should read the comments more often. Thanks!

5,704
Life MemberLife Member
5,704

PostJul 02, 2021#252

No big wins for the region in the latest round of Fed transportation grants.  This time INFRA.   Of note, not much for inland waterways except some small port improvements for City of Dubuque.   A little surprised that current admin still went heavy with highway improvements, maybe not with all the trucks on the road.

Their is some direct competition for the containers via inland waterway in part with ports teaming up and pursuing Inland ports arrangements where the boxes go straight from ship to rail car for inland version of landing at a port facility/onto truck inland.     Port of Houston and or Port of Alabama (Mobile) might see this type of arrangement as means to service such metros as Dallas, Memphis, KC, St. Louis if they can partner with port authority and railroad.  See this as an outside possibility with new KCS-CN merger if the railroad can get on site dock access.

List of INFRA awards can be found in link to article.   Illinois picked up an grant award, rail road grade separation in Chicago area

https://dredgewire.com/georgia-ports-au ... -new-port/

 The City of Dubuque will be awarded $5 million to increase capacity and make improvements to the Gavilon marine port and rail facility at Dove Harbor terminal at the Port of Dubuque.

 The Illinois Department of Transportation will be awarded $15 million to grade separate Archer Avenue roadway and two existing Beltway Railway of Chicago (BRC) rail tracks.

sc4mayor
sc4mayor

PostJul 06, 2021#253

Chris had posted (I think) some photos of the Merchants Bridge progress on skyscraper page (or someone posted his photos over there).  Anyway, I hadn't really been able to find any images or renderings of the completed bridge.  For some reason, I vaguely remember an image of the new bridge having no trusses, which would have sucked.

Found this cool video today detailing the construction process.  I took some screenshots so youse don't have to watch the whole 11 minute video if you don't want.  Really, really glad it's going to remain a truss bridge (and they even look larger than the old ones), but it does kind of suck losing some of that steel work on the approaches and the masonry piers.


Pier reinforcement (will be a full cap):


Illinois approach reinforcement (also fully capped):


Removal of an old span:


Incoming new span:


Completed river spans:


Including the Illinois approach:

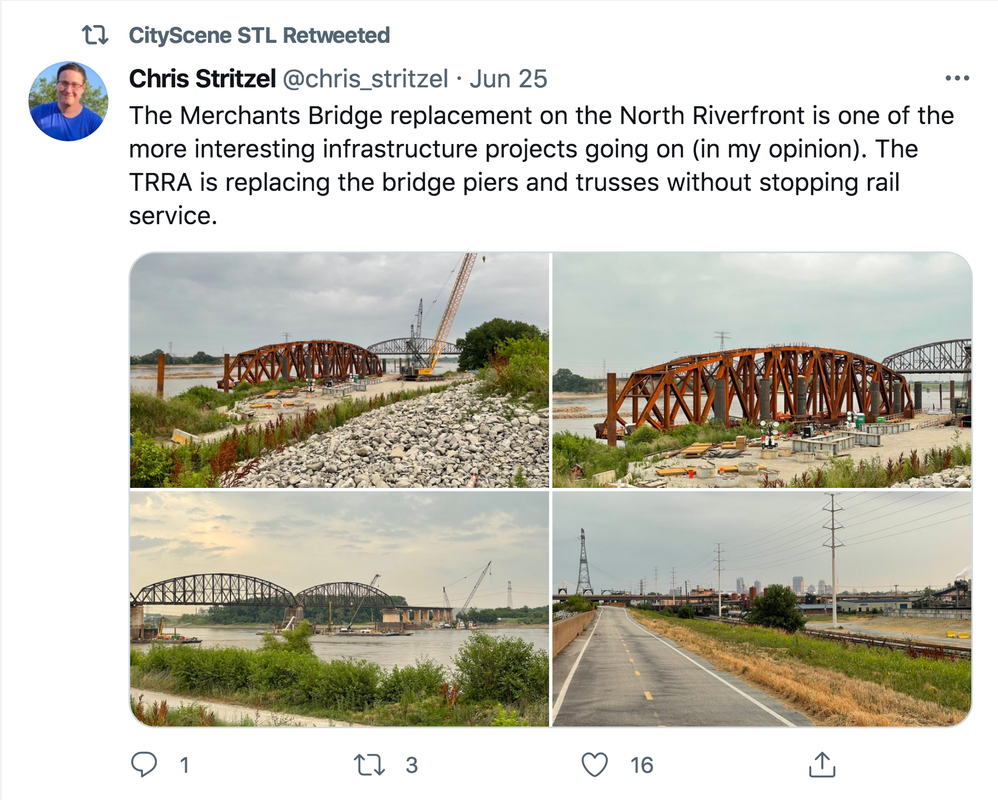

Edit:  Here is a screenshot of Chris' post:

5,704
Life MemberLife Member
5,704

PostJul 06, 2021#254

^ Thanks for posting.   Have to agree.  You see this type of span replacement more so on highway bridges over busy freeways & arterials.  However, to see it come together on a bigger scale and over an active fast moving waterway is pretty cool.   Too bad they could come up with a better approach for Illinois side but assume it was all value engineered driven with the least impact to rail service so essentially get what you see.

6,118
Life MemberLife Member
6,118

PostJul 07, 2021#255

^I don't think there's any mechanical reason they need to use a through truss. I give them points for doing a fancy bridge when they could have done an absolutely forgettable one. Anybody know what's the become of the original spans? (I'm guessing they'll end up scrapped, but I wouldn't mind seeing them put to some lighter use.)

sc4mayor
sc4mayor

PostJul 07, 2021#256

^ I had the same thought watching those old spans come out.  Would love to see them saved and used for a pedestrian crossing(s) somewhere.  Off the top of my head...GRG could use each span individually for smaller crossings they routinely build or a giant one.  Maybe the National Building Arts Center could store them until a better use could be found.  They are from 1889, after all...

Would hate to see them go to waste.

sc4mayor
sc4mayor

PostJul 23, 2021#257

St. Louis port, already Mississippi River's most efficient, improves capacity with new terminal and infrastructure
https://www.bizjournals.com/stlouis/new ... q21HFjQ3Ss
“For a commodity transportation and distribution company like Oakley, St. Louis is one of the most strategic locations on the river system. No other city connects river, rail and road quite like the Ag Coast of America. Deep barge drafts, the lock-free and ice-free river to New Orleans, connection to the Class-1 railroads and proximity to many industrial accounts that Oakley also services, make the Ag Coast a perfect location for us. Having the largest and most efficient fertilizer terminal in the area, complemented by a high-speed grain loading terminal, makes Oakley uniquely suited to add value to customers throughout the region.”
Using total tonnage data released by the U.S. Army Corps of Engineers, the St. Louis Regional Freightway calculates the efficiency of inland ports by dividing the total tonnage by miles of the port, measuring tons moved per mile. The tons-per-mile figure for St. Louis is currently 445,741, compared with the closest competitors of Huntington, West Virginia, and its tri-state area that ships 184,924 tons per mile, followed by Cincinnati/northern Kentucky with 161,946 tons per mile.

sc4mayor
sc4mayor

PostAug 05, 2021#258

Speculative new logistics center, Westport Commerce Center, under construction in Maryland Heights
https://www.bizjournals.com/stlouis/new ... trial.html
6 buildings, 1.3 million square feet.

Some other recent warehousing news:
Five St. Louis buildings sold as part of 'high-performing' Midwest industrial portfolio
https://www.bizjournals.com/stlouis/new ... louis.html

Exeter's purchase of entire Duke Realty portfolio could be St. Louis' largest-ever industrial sale
https://www.bizjournals.com/stlouis/new ... ealty.html
Exeter Property Group has closed on what could be the largest industrial sale in St. Louis history with the purchase of Duke Realty’s entire St. Louis portfolio.  The real estate firm purchased 14 warehouses in Hazelwood, St. Peters, Bridgeton and Maryland Heights that cover a combined 4.3 million square feet, in a deal that closed Thursday. The combined properties sold for more than several hundred million dollars, but an exact sales price was not disclosed.
............
The 37 tenants across the warehouses included in the Duke portfolio are all 100% leased with an average lease term remaining of 6.4 years. Notable tenants are Best Buy, Reckitt Benckiser, Keefe Supply, Macy’s, Distribution Management, Fiserv and Trane.  The warehouses made up most of what remained of the Duke Realty portfolio in St. Louis, with some properties that haven’t been developed yet already sold in a separate transaction. Duke exited St. Louis at the same time the company chose to exit three other markets, but the St. Louis portfolio was viewed as the easiest of those four to sell since the properties were fully leased, Hrubes said.
............
The CBRE broker noted that he sees St. Louis capitalization rates, or estimates for the market’s return on investment, catching up with other Midwestern cities.  “The cap rate in St. Louis is now competing with other markets in the Midwest for investors to place money in, and it’s a good sign of where we’re at in St. Louis that we’re catching up to our competition in Kansas City, Nashville, Indianapolis, Columbus, Ohio, Cincinnati, etc.,” Hrubes said.

2,928
Life MemberLife Member
2,928

PostAug 05, 2021#259

There was a solid editorial in the Business Journal today, written by Mary Lamie, Director of the STL Regional Freightway...

STL Biz Journal: Commentary: Spotlighting the St. Louis region’s global connectivity

After reading this, I went back to the Freightway's website and reviewed some of the news stories from Freight Week 2021. I paid extra attention to their industrial report, essentially a comprehensive listing of vital projects that are in-progress or being planned.

2022 Priority Freight Projects, St. Louis Regional Freightway

This PDF is essential reading to project what's going to happen next with logistics & related construction in STL Metro. I hadn't had the time to read the whole thing before today, but I dove in earlier and loved it. Starting with the new Merchants Bridge, it goes item by item on what they're quarterbacking and furthering to build up STL's strengths in logistics, shipping, warehousing, and the like.

Best insights:
  • Air Freight, pp.14-15: "St. Louis Lambert International Airport is moving forward with an international cargo facility, which includes construction of a new terminal with ramp for freighter aircraft." I'm not sure how much this correlates to the Bi-National Gateway Terminal plans for the old McDonnell Douglas fighter building that have been long in the making. But, the way this reads is that this is maybe something new? Personally, I absolutely believe one of the best things the Airport can do is expand warehousing options and bring in more air freight. This could be significant. They're also looking at ways to improve "Cargo City"; I wouldn't mind a complete do-over and expansion.
  • River Ports, pp.32-33: STL County is looking at whether or not they can build 2 new ports, one in NoCo and one in SoCo. Concurrently, the City's port is getting upgrades to its rail access. Also...
  • The Jefferson County Port Authority is looking at building a new multimodal port in Crystal City, right near Festus and south of Herculaneum. They are proactively targeting the Container-on-Vessel plans of American Patriot Holdings, specifically recognizing our ties to the Port of Plaquemines, LA in their write-up. It's in the design phase. If we're including improvements to roads and rail that will serve this project, this port has a preliminary estimated cost of $240MM. That's more expensive than reconstruction of the Merchants Bridge. For a quarter billion dollars going into JeffCo, we can anticipate this being the candidate multimodal port for cargo containers coming north from the Gulf of Mexico. This is the future hub.
Addn: American Patriot Holdings' plans are not the only CoV plans coming into play (although they remain the biggest by an order of magnitude). Arcosa Marine Products announced the release of a new hopper barge meant to ferry standardized cargo containers (TEUs, Twenty-foot Equivalent Units). Each of these new barges would be double the size of a standard barge but would be able to hold 224 TEUs apiece. That's a hell of a lot of cargo for a barge.



While I don't see this overtaking the APH CoV plans, I'm very glad to see competition here, further validating the market opportunity river shipment of TEUs presents.

sc4mayor
sc4mayor

PostAug 05, 2021#260

Excellent stuff. Thanks for the summary, GC.

6,118
Life MemberLife Member
6,118

PostAug 06, 2021#261

^Thank you GC. The rail projects are massive and we've needed them forever. The Lambert projects have been on everyone's radar, at least on this board, I think. But the 270 stuff is equally critical and lower profile. I hope that one day we can see more of this at a port near you. (And me.) And to really make it work we need all of these projects together. Dang it, this is a huge and absurdly busy port. It really is. We have more tonage through here than Can Tho. (About 30 times more, in fact.) We need to be seeing boats like the one below on the regular. They're real and they work . . . it's past time to get them here.


sc4mayor
sc4mayor

PostAug 06, 2021#262

Read through the 2022 list earlier this morning and lots of things stand out.  With all the federal cash (hopefully) soon coming down the pipe I think most of these will get done fairly quickly.

One that really stood out to me was the Lennox Tower and track realignment, which has been completed:
Realigning the trackage through the Lenox Tower interlocking increased freight train speed limits from the 10-30 mph range to the 40-60 mph range through the junction. Passenger train speeds also increased from the 40-60 mph range to nearly 80 mph. Increased velocity reduced the existing bottleneck and increased the capacity and efficiency of the St. Louis region’s rail network. In 2018, dispatching control was automated and incorporated into Union Pacific centralized dispatching in Omaha, Nebraska. This coordination optimizes local rail traffic and allows the railroads to increase velocity through the St. Louis terminal, which creates a competitive advantage with other rail interchange locations, such as Chicago. In 2019, the project received approximately $5.1 million in CRISI funding to reconfigure the Lenox Interlocking. Remaining costs were funded through a partnership with the railroads, Amtrak, and IDOT.
And for us railfans...some cool details about the Lennox Tower:

6,118
Life MemberLife Member
6,118

PostAug 07, 2021#263

^A local collector salvaged the lever machine. Apparently none of the local museums wanted it. It's not really display worthy anymore as UP apparently scavenged for parts pretty heavily, but it sounds like the bones of something interesting are there. So while not optimal, not everything was lost.

62
New MemberNew Member
62

PostAug 24, 2021#264

Finally, it looks like they've got the funding necessary to complete the Lenox Tower replacement project:

https://www.progressiverailroading.com/ ... uis--64408

5,704
Life MemberLife Member
5,704

PostAug 24, 2021#265

Nice catch kota.  Big improvements for rail in the region between the Merchants rail bridge and Lenox junction rebuilds.

62
New MemberNew Member
62

PostAug 24, 2021#266

Thanks dredger.

Please don't forget the ongoing rehab work being done to the Macarthur Bridge:

https://www.stltoday.com/business/local ... a9b79.html

Excerpt from the linked 2019 StL PD article:

"A $28.8 million federal grant will pay for more than half of a major rehab project on the MacArthur Bridge.

The Terminal Railroad Association of St. Louis, which owns the bridge, said work on the $57.3 million project is expected to begin in the summer of 2021 and take two years."

6,118
Life MemberLife Member
6,118

PostAug 25, 2021#267

^Heh! I follow Asim Raza on the Tweetstream. He mostly posts about baseball and hockey and seems to be a friend of our own JShank. Seems like a neat fellow. Had no idea he worked for the Terminal. That makes him even cooler in my book. :) Good on the entire TRRA crew for getting this all accomplished.

2,928
Life MemberLife Member
2,928

PostSep 02, 2021#268

MoDOT via STL Regional Freightway: Missouri River Container-on-Barge Service Receives Marine Highway Designation

It's a press release, and a quality read all the same...
The Missouri Department of Transportation has received one of six Marine Highway Project designations from the U.S. Department of Transportation’s Maritime Administration (MARAD) as part of the America’s Marine Highway Program (AMHP). The application to initiate a container-on-barge service was developed in partnership with AGRIServices of Brunswick (ASB), the largest multimodal transportation provider on the Missouri River.

This is MoDOT’s first designation and only 52 such designations have been approved since the program’s inception in 2010. A Missouri Department of Agriculture grant to ASB was used to develop the application with technical support from MoDOT’s Multimodal Division.

The AMHP encourages the use of America’s navigable waterways for the movement of freight and people as an alternative to land-based transportation. This Container-on-Barge Project will expand options for the transportation of goods on inland waterways beginning with agricultural products at ASB in Central Missouri to international markets in the Gulf of Mexico as early as 2022. The service could then expand to other products along the Missouri River.
TL/DR: We're soon going to see Ag in TEU containers on the Missouri River, coming out of Brunswick, MO and headed to the Gulf of Mexico for export.
With the success of Ag commodities, this likely will expand to "other", i.e. manufactured, containerized goods coming from central MO.

FYI The Brunswick port is 200+ acres with a mile of river frontage, and apparently has a major spur for Norfolk Southern.

6,118
Life MemberLife Member
6,118

PostSep 19, 2021#269

We've gone from graphic to reality: First Truss of New Merchants Bridge Hoisted Into Place

sc4mayor
sc4mayor

PostSep 19, 2021#270

^ I’ve seen a ton of pics and vids from rail fans all over Facebook. It’s a super cool operation.

2,928
Life MemberLife Member
2,928

PostSep 28, 2021#271

STL Biz Journal: New Metro East spec warehouse would be largest ever built in St. Louis, over 1M square feet

Gateway Tradeport is building its newest warehouse-based industrial park at the SW corner of 255 and 270 in Pontoon Beach. They're planning eleven buildings overall. They've just finished building #3 at 625K sq.ft. Building #4 will be 1MM sq.ft. and is being built fully on spec. They anticipate it opening in a year from now, 3Q22.

Demand for warehousing and logistics is huge nationwide. Class A warehouse space in STL Metro is already at capacity. It's a damn good thing to see developers thinking so highly of what the region can host, added with total cross-sector demand, that they're willing to spend so much money on the biggest warehouse to be built in STL yet. More to the point, on a fully speculative project. That the developer's comments in the article focused on hope that their bet will be big enough to satisfy demand only validates this industrial growth.

2,053
Life MemberLife Member
2,053

PostOct 13, 2021#272

Some recent views of the port backup

https://vm.tiktok.com/ZM8NPHu6L/

5,704
Life MemberLife Member
5,704

PostOct 13, 2021#273

Globalization is far from dead and more then few US Ports are planning infrastructure projects, deepening and widening channels for even bigger ships

https://dredgewire.com/americas-ports-a ... -projects/

https://dredgewire.com/port-houston-202 ... -the-port/

Port of Long Beach CA just got is recommendation for Deepening and Port of NY/NJ working on its next round of deepening for mega containerships.

2,928
Life MemberLife Member
2,928

PostOct 13, 2021#274

^ & ^^ This all bodes very well for the potential Mississippi River CoV projects. Very clearly, the United States needs more options for receiving incoming containers from East Asia because Long Beach / Los Angeles is currently a bottleneck for which there are very few substitute ports of entry. If APH, et.al can provide a viable substitute route system, with significant cost savings, then we'll be all the better for it.

Agree on an absolute basis that Globalization is far from dead.

329
AdministratorAdministrator
329

PostOct 14, 2021#275

gone corporate wrote:
Oct 13, 2021
^ & ^^ This all bodes very well for the potential Mississippi River CoV projects. Very clearly, the United States needs more options for receiving incoming containers from East Asia because Long Beach / Los Angeles is currently a bottleneck for which there are very few substitute ports of entry. If APH, et.al can provide a viable substitute route system, with significant cost savings, then we'll be all the better for it.

Agree on an absolute basis that Globalization is far from dead.
And this recent NYTimes article clearly spells out that the CoV project is necessary for the port of Savannah to get those containers out of the port and closer to their destinations faster and with fewer personnel.

https://www.nytimes.com/2021/10/11/busi ... -port.html
